Modern Design & Features 'and' Backwards Compatible.

All modern units are multi-format offering AHD, HD-TVI, HD-CVI and CVBS signals compatible with not only our Zip range of DVRs but most third party recorders in the market place today.

Cases are metal providing the best quality at this price point, eyeballs/turrets feature a single grub screw for easy and secure installation.

Cameras with up-the-coax control support motorised zoom and focus directly from the DVR.

All new models with IR feature a true day/night mechanical IR filter.

Customers looking to upgrade or replace cameras on their Alien HD DVRs can choose any of the 2MP cameras safe in the knowledge that they are plug-in replacements.

Lite Range

GEM and older Zip branded analogue cameras form the entry level product at 2MP resolution, they are available in either eyeball/turret or bullet style cases, with fixed 3.6mm or varifocal 2.8-12mm lens. All are 12v DC, multi-format, offer InfraRed for 30m or beter illumination.

The smallest mid-sized eyeball is just 100mm diameter, it's externally rated so is suitable for use both inside and out, the white housing loks great in an office environment.

The bullet with its slightly larger case has a more imposing presence, this in itself can act as a deterrent..

All Lite range products come with 12 months RTB warranty.

SMART Range

With greater resolution, the SMART range boasts 4MP and 5MP cameras fixed and varifocal eyeballs, bullet and even a PTZ providing high quality images. The range is supported by a 2MP PTZ with an incredible 5-150mm zoom.

As is standard in the Zip range, all units feature a quality metal body.

This range is perfect for homeowners, small businesses, electricians and installers wanting more from their CCTV system. It's also a great way to upgrade older systems utilising the existing coax cabling thus keeping installation costs down.

All SMART range products come with 12 months RTB warranty.

PRO Range

Designed to meet the needs of users seeking advanced AI features and the best quality 4K ultra-high resolution images, the PRO range fits the bill perfectly.

Aimed at the professional installer market, this range is used by NSI and SSAIB affiliates as well as system integrators and specialists looking to upgrade existing systems, it's a must-have for the professional installer looking for the best possible product at a competetive price.

All PRO range products come with three year RTB warranty, but 3 x months advanced replacement (T&Cs apply).

LITE Range : 2MP Eyeball/Turret & Bullet

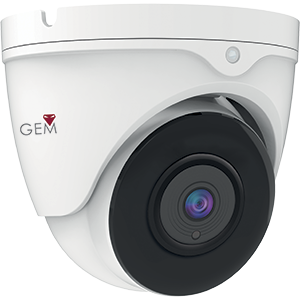

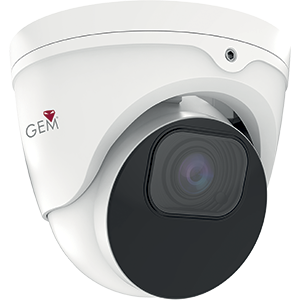

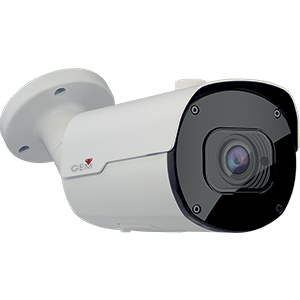

PropertyCAM1100WCAM1200W/BCAM1600W
image-0
image-1
image-2
Resolution2MP2MP2MP
Lens3.6mm2.8 - 12mm mptorised2.8 - 12mm motorised
Body StyleEyeball/TurretEyeball/TurretBullet
FormatAHD, TVI, CVI, CVBSAHD, TVI, CVI, CVBSAHD, TVI, CVI, CVBS
Infra Red30m40m40m
CoaxitronYesYesYes
Body MaterialMetalMetalMetal
IP RatingIP66IP66IP66
Power12v DC 2.1mm12v DC 2.1mm12v DC 2.1mm
Power Consumption130mA (300mA with IR)130mA (490mA with IR)130mA (490mA with IR)
Operating Conditions-20 to +50 degrees, <50% RH-20 to +50 degrees, <50% RH-20 to +50 degrees, <50% RH
Dimensions100 x 90mm (Diameter x H)135 x 127mm (Diameter x H)90 x 151mm (Diameter x L excl Bracket)

SMART Range : 5MP Eyeball/Turret, Dome and Bullets

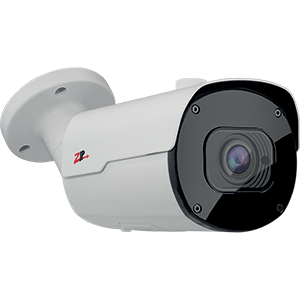

PropertyCAM2100W/BCAM2200W/BCAM2400WCAM2600W/B
image-0
image-1
image-2
image-3
Resolution5MP5MP5MP5MP
Lens2.8mm fixed2.8 - 12mm motorised2.8 - 12mm motorised2.8 - 12mm motorised
Body StyleEyeball/TurretEyeball/TurretAnti-Vandal DomeBullet
FormatAHD, TVI, CVI, CVBSAHD, TVI, CVI, CVBSAHD, TVI, CVI, CVBSAHD, TVI, CVI, CVBS
NiteDevil TechnologyYesNoNoNo
Infra Red30m40m25m40m
White LightYes - 20mNoNoNo
AudioBuilt in Mic & Audio over coaxNoNoNo
CoaxitronYesYesYesYes
Body MaterialMetalMetalMetalMetal
IP RatingIP66IP66IP65IP66
Power12v DC 2.1mm12v DC 2.1mm12v DC 2.1mm12v DC 2.1mm
Power Consumption90mA (350mA with IR)130mA (490mA with IR)130mA (350mA with IR)500mA with IR
Operating Conditions-20 to +50 degrees, <50% RH-20 to +50 degrees, <50% RH-20 to +50 degrees, <50% RH-20 to +50 degrees, <50% RH
Dimensions90 x 90mm (Diameter x H)135 x 127mm (Diameter x H)148 x 109mm (Diameter x H)90 x 151mm (Diameter x L excl Bracket)

SMART Range - 2MP & 5MP PTZ

PropertyPTZ200WPTZ201/B
image-0
image-1
Resolution5MP2MP
FormatAHD, TVI, CVI, CVBSAHD, TVI, CVI, CVBS
Lens4.7 - 84.6mm (18x optical zoom)4.6 - 152mm (33x optical zoom)
Infra RedYes - 60mYes - 140m
True Day/Night Mechanical FilterYesYes
Alarm Inputs4
Alarm Outputs1
Pan Speedup to 180 degrees / secondup to 200 degrees / second
Tilt Speedup to 30 degrees / secondup to 75 degrees / second
Tilt Range 0 to 90 degrees downwards
ProtocolsPelcoD/P, Hik, Dahua
Up the Coax ControlYes - CoaxitronYes - Coaxitron
RS485YesYes
Presets220220
Tours8 (with 32 presets each)
Power12v DC 1.7A24v AC
IP RatingIP66IP66
Operating Conditions-20 to +60 degrees centigrade <90% RH
Weight4Kg
Dimensions249 x 137 x 197mm (H,W,D)370 x 259 x 170mm (H,W,D)

PRO Range : 8MP

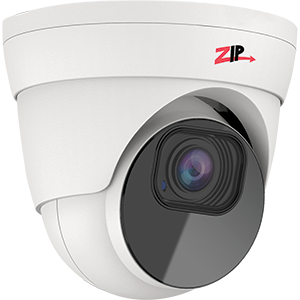

PropertyCAM3100W/BCAM3200W/BCAM3600W/B
image-0
image-1
image-2
Resolution8MP (4K)8MP (4K)8MP (4K)
Lens2.8mm2.8 - 12mm motorised2.8 - 12mm motorised
Body StyleEyeball/TurretEyeball/TurretBullet
FormatAHD, TVI, CVI, CVBSAHD, TVI, CVI, CVBSAHD, TVI, CVI, CVBS
NiteDevil TechnologyYesNoNo
Infra Red30m40m40m
White Light20mNoNo
AudioBuilt-in-Mic (audio over coax)NoNo
CoaxitronYesYesYes
Body MaterialMetalMetalMetal
IP RatingIP66IP66IP66
Power12v DC 2.1mm12v DC 2.1mm12v DC 2.1mm
Power Consumption90mA (350mA with IR)
Operating Conditions
Dimensions
